PPM - Marine/Underwater Version

(sorry - this page is available in English only)

This is an advanced hobby amateur project which includes the construction of a small submarine "towfish" that is towed to a boat. It allows to measure the magnetic field up to a depth of 100 meters. The basic idea is simple:

Here a closeup illustration of the "towfish". The sensor will be located in the left chamber, the electronics in the right. The Bluetooth junction-box resides in the boat. One requirement was that a cheap 3-pole cable shall be used with a length of up to several hundret meters.

The electronics part includes the sensor, the towfish electronics, and the junction box for the boat. The sensor is filled with about 300ml liquid paraffin which has the advantage that it does not freeze compared to water.

The electrical connections from the electronics up to the Bluetooth connection. We decided not to power the fish through the cable, adding a battery to the fish. This avoids the need of adding a DC/DC converter - that would produce electromagnetic disturbances - to the fish. Since there is no significant current through the cable, the communication protocol and levels can be simple and robust. All kinds of wrong connections will not destroy anything:

The app on Android can show either a numerical or a map screen:

The self-made boards for a prototype:

The manufactured boards (unfortunately not cheap for a hobby project):

A first test. It must be done outside of buildings:

Improvisong a climate chamber for simulating low temperatures:

The recording was done outside about 200m away from buildings with 1 measurement per second. The standard deviation is about 0.67nT. It would be very interesting to see such data from another proton magnetometer (Geometrics,...). Who can help? I would be happy if you would contact me!

Some hard work was needed to build the fish:

Finally it is ready, the part from the lathe above is the nose on the left in the following picture. The electronics and battery are in the left chamber, the sensor on the right, to avoid any influence:

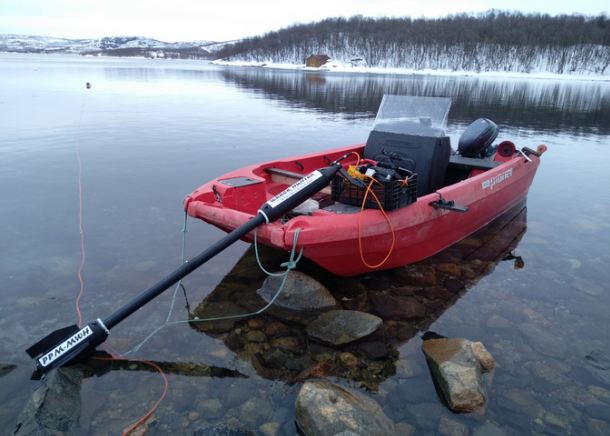

After some pressure testing the first try in the sea (April 2023) was done!

A known sunken ship was detected perfectly. But this does not really show the performance of the magnetometer because the deviation was about 5000nT when floating over the ship. However this proves that the tuning-free electronics are valuable, typically a normal tuned PPM would have generated erratic values when being unsed in fields not being tuned to:

Zooming in in some section of the recorded path, the low noise of about 2nT peak to peak can be observed:

So after all we are happy that we reached this point after so many hours of designing, building and testing. Let's see if we will find something nobody has discovered so far. ;)
